Are you still cleaning the connector like this?

2019-09-25

Fiber optic operation is always meticulous, because every piece of data forms a judgment, whether it's a techie or a novice, after every seemingly ordinary operation, some things happen↓

If you operate like the figure above, we are sorry to inform you that this fiber "Over".

"Culprit" for doubling optical fiber loss

After verification, it is known that the invisible particles and dirt are distributed on the end face of optical fiber.Data shows that 85% of network failures are due to dirty ports when connecting.Therefore, before operation, we need to make sure that the end face of the optical fiber is clean.

"Culprit" for doubling optical fiber loss

So what should we do when we encounter such problems?

First, you need to know if there is any dirt on the end↓

Orientek Hand-held optical fiber end magnifier which can be up to 400 times of magnification. In fact, there are 200 times and 400 times of choice.

Orientek Hand-held optical fiber end magnifier▴
Orientek Hand-held optical fiber end magnifier▴

In terms of design, we strive for perfection. The focus of this product is very accurate, and the imported lens is used, so the picture can be clear when you look at it. In the detection object, suitable for PC end face, also can detect APC end face.



To many people, although the magnifying glass is good, but can only see the particles more clearly is not straightforward, Orientek optical fiber interface detector is also appropriate, it can directly reflect the end face dirt situation, 400 times magnification, let the end face condition be clear at a glance.The identification accuracy is less than 1 um, which is very reliable.

Orientek optical fiber interface detector

 we also added real-time video recording and extended TF card in our products, whose function is to record the detection situation in real time, which can support data playback and facilitate the later inspection and data statistics.

Second, When it comes to cleaning fiber optics, it's a very specialized job,

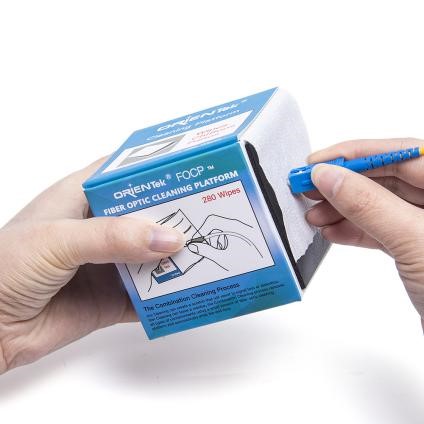

Orientek FOCP a good solution to this problem,This product is made of professional dust-free and lint-free cloth material, and will not be contaminated with any lint caused by ordinary cleaning paper when it is cleaned, causing secondary pollution.

Orientek FOCP

In operation, there are a lot of usage scenarios will be infected with a lot of dust contamination, not just face, like bare fiber, equipment screen presence of particulate matter,Orientek cylindrical optical fiber clean paper's daily operation need necessary accessories, cylinder design, easy to draw, one hand to operation, import clean no velvet paper is of good cleaning effect to expensive equipment such as fusion splicing .

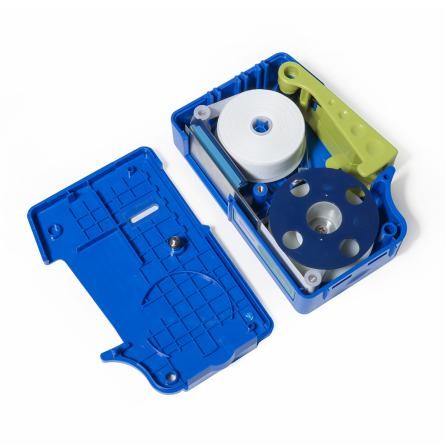

The following cleaning product --Orientek cassette type optical fiber end face cleaning box, using the cassette design, when using the optical fiber core in the cleaning belt gently rub a few times can clean the end face

rientek cassette type optical fiber end face cleaning box

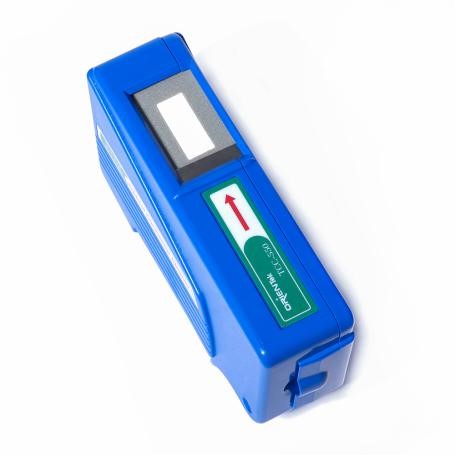

Orientek cassette type optical fiber connector cleaning box▴

Its cleaning mouth cover design is very intimate, after using can be gently closed, to avoid cleaning paper surface from secondary pollution.Generally after using more than 500 times, changeable clean core is more economical.

Orientek cassette type optical fiber connector cleaning box▴

There is a more minimalist version of this cassette cleaning box↓

Orientek cassette type optical fiber connector cleaning box

In addition to the same cleaning efficiency and cleaning function as the previous product, the clean paper that has been wiped on the end face can be transferred to the other side by rotating the yellow gear, so that the clean paper can be exposed.The lightweight design allows you to estimate the amount of clean paper needed at any time. At the same time, the replaceable cleaning core can also help to save a lot of costs.

The cleaning of the connector seems not important, but it will cause a lot of interference to our optical fiber work if ignored. Therefore, we must pay attention to check the situation of the connector, and do a good job of cleaning the connector in time.
