Details

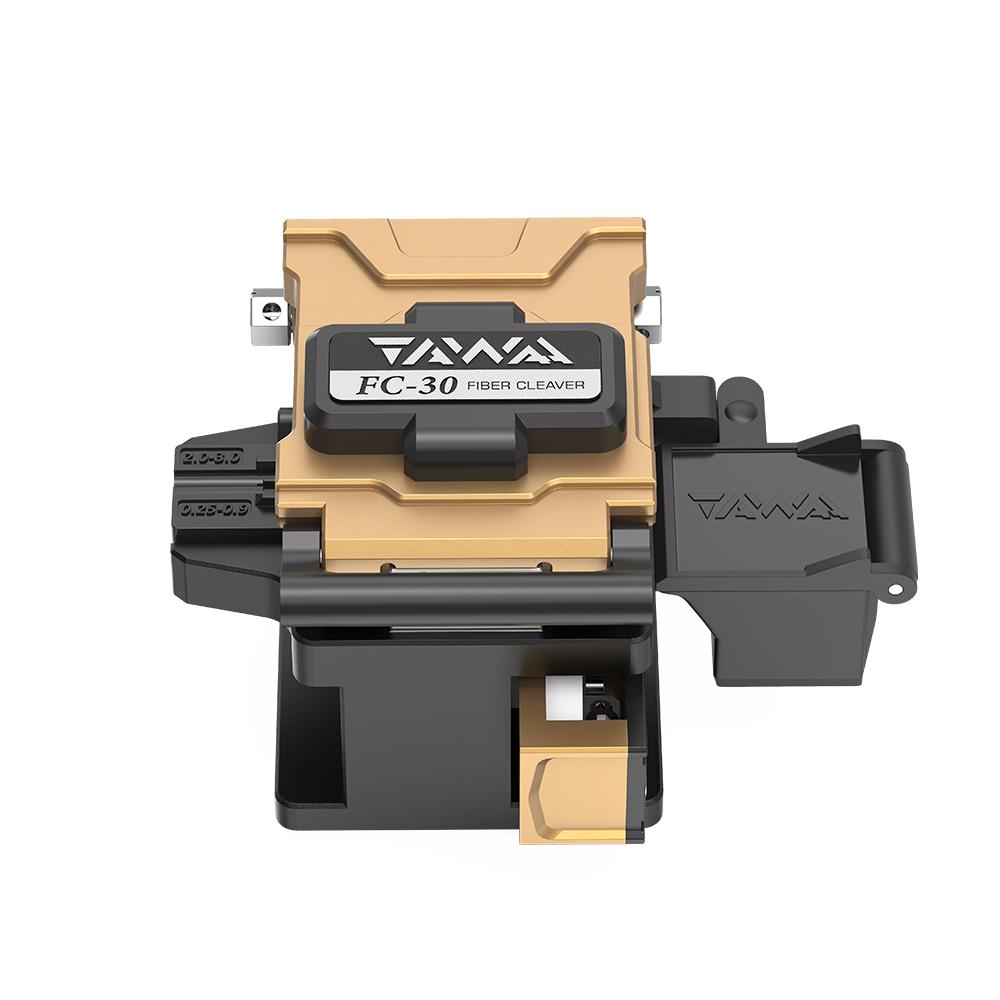

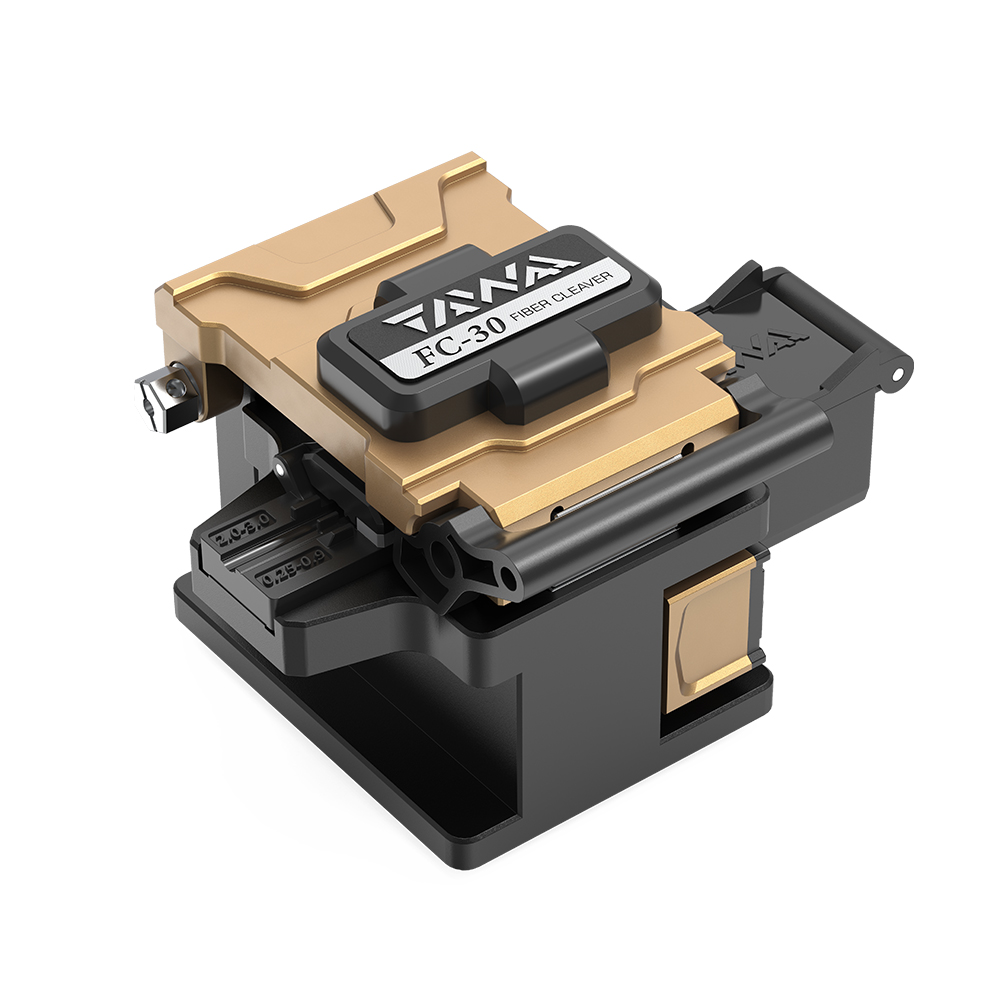

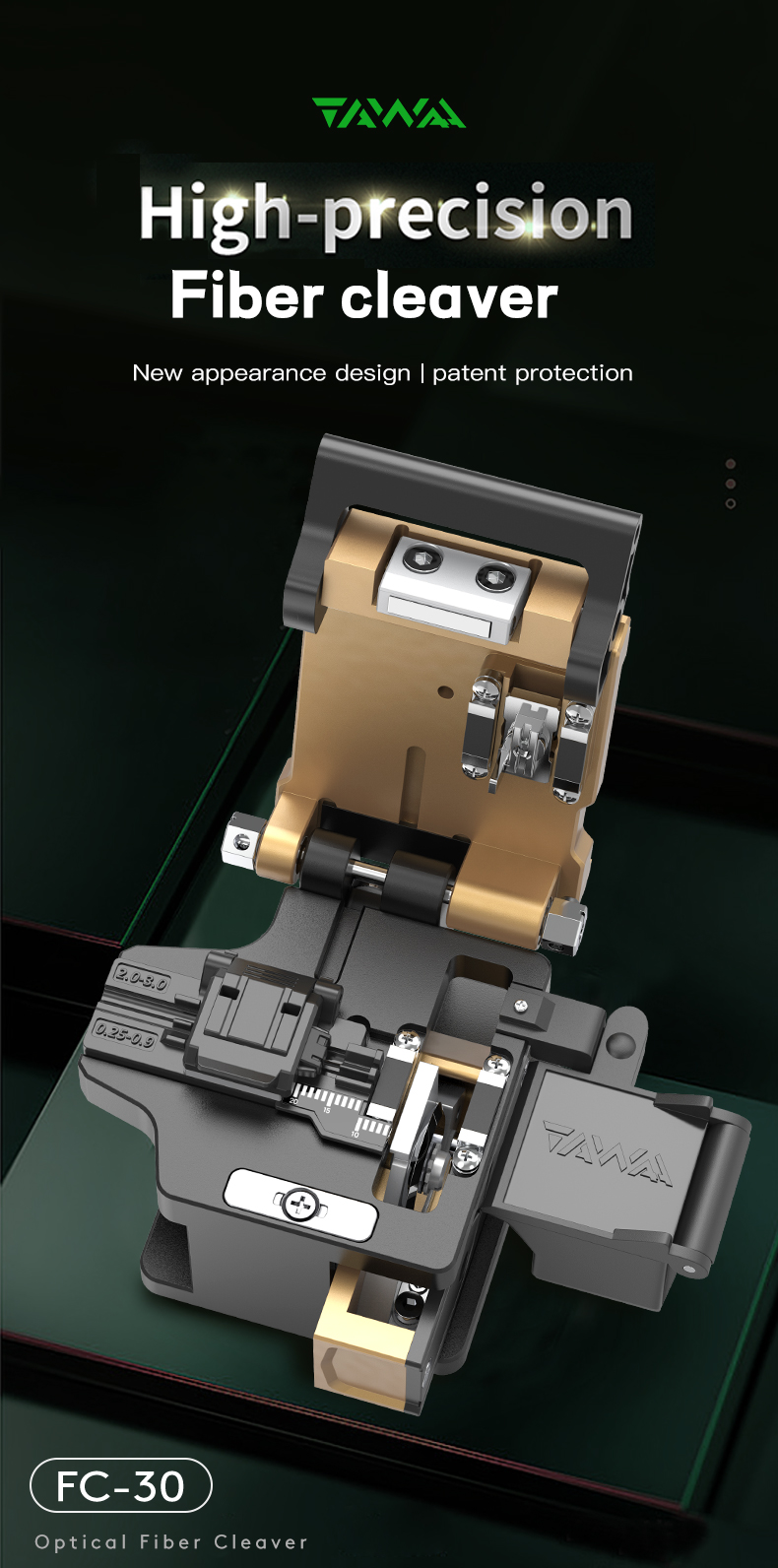

TAWAA FC-30 is a traditional bench top cleaver.simple and easy to use. It isavailable with a fibre offcut collector. it is applicable to 250um. 900um,

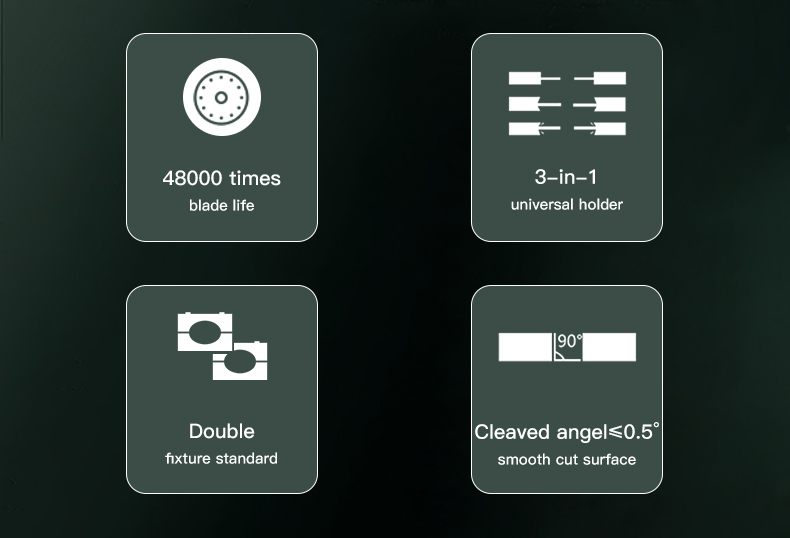

3.0mm fiber cable and flat cable. work efficiency and high precision cleavedangle of typical 0.5 degree. The blade provides over 48,000 fiber cleaves byeasy and simple blade position selection.

Product parameter:

Fiber Meterial Single fiber
Cladding Diameter 125μm
Cleaved Length Single fiber: 8~20mm / Ribbon fiber: 10mm

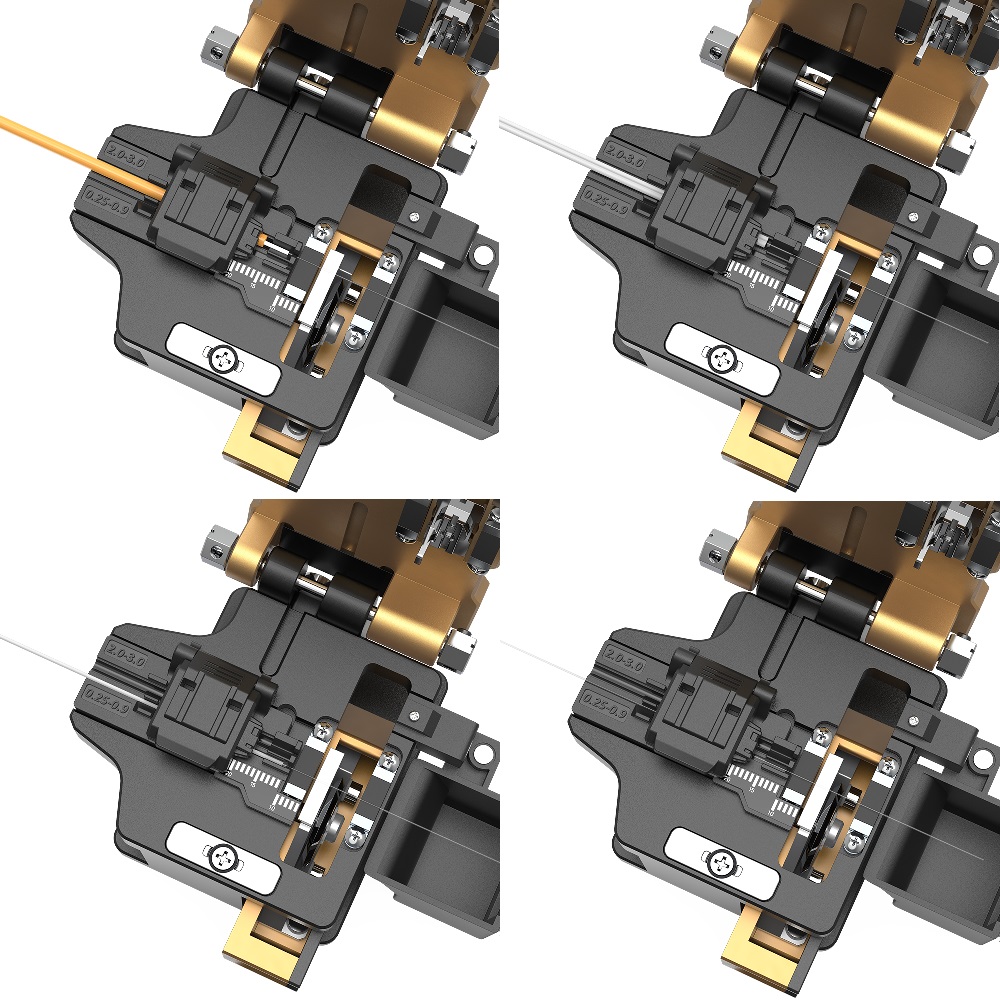

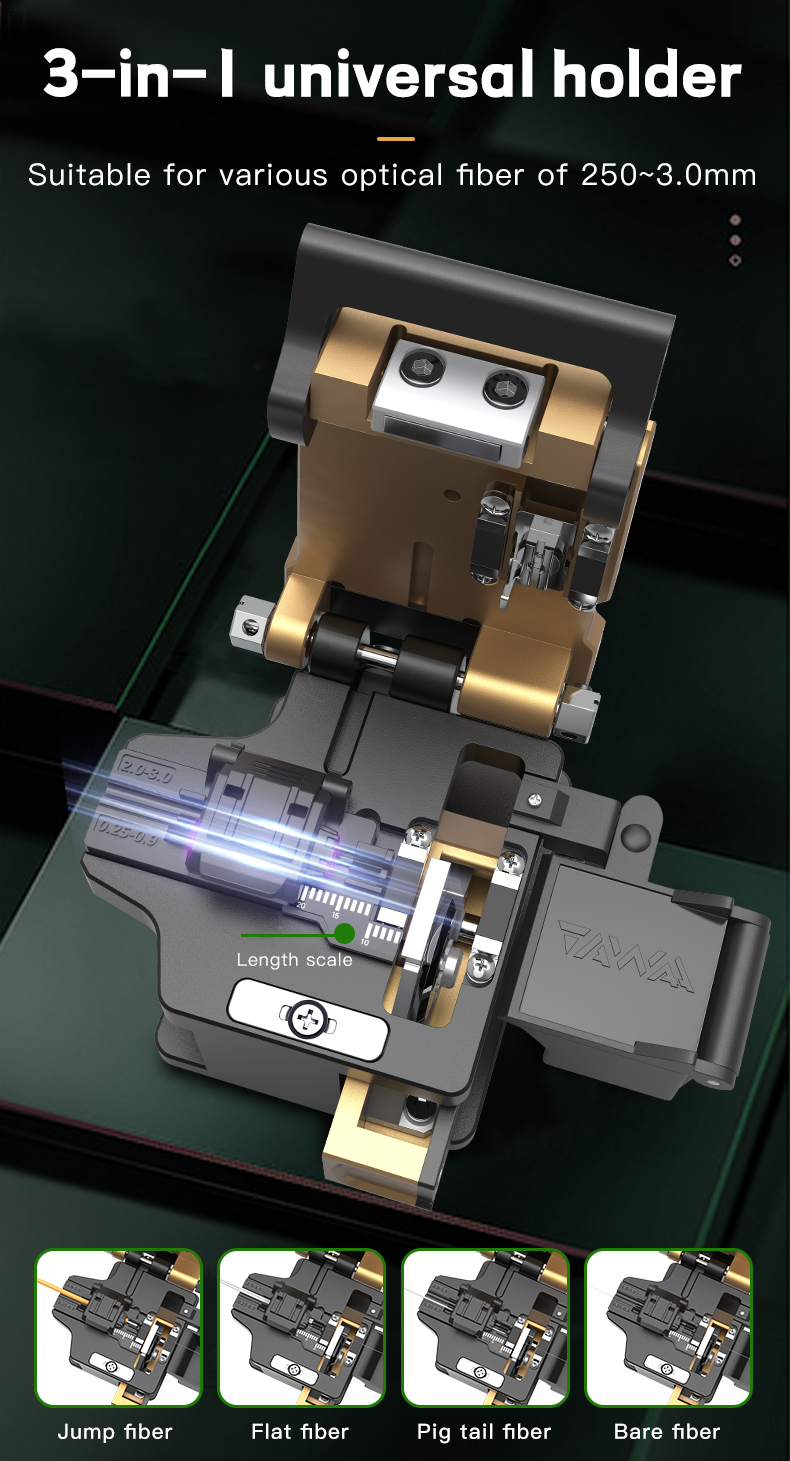

Applicable Fiber Cable Single fiber: 250μm, 900μm, 3.0mm
/ flat cable / Ribbon fiber: 2 to 12 fiber cable

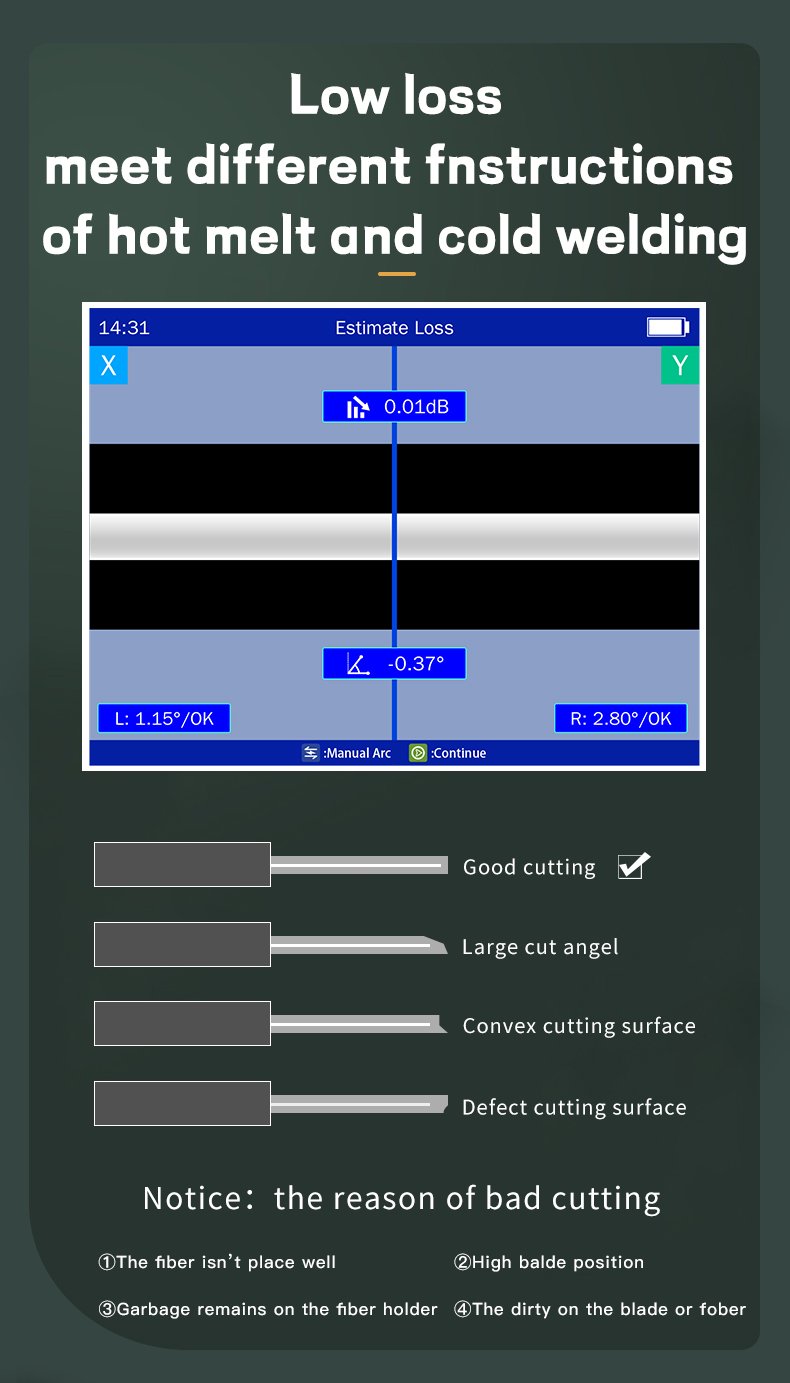

Typical Cleaved Angle Less than 0.5 Degrees  ★①

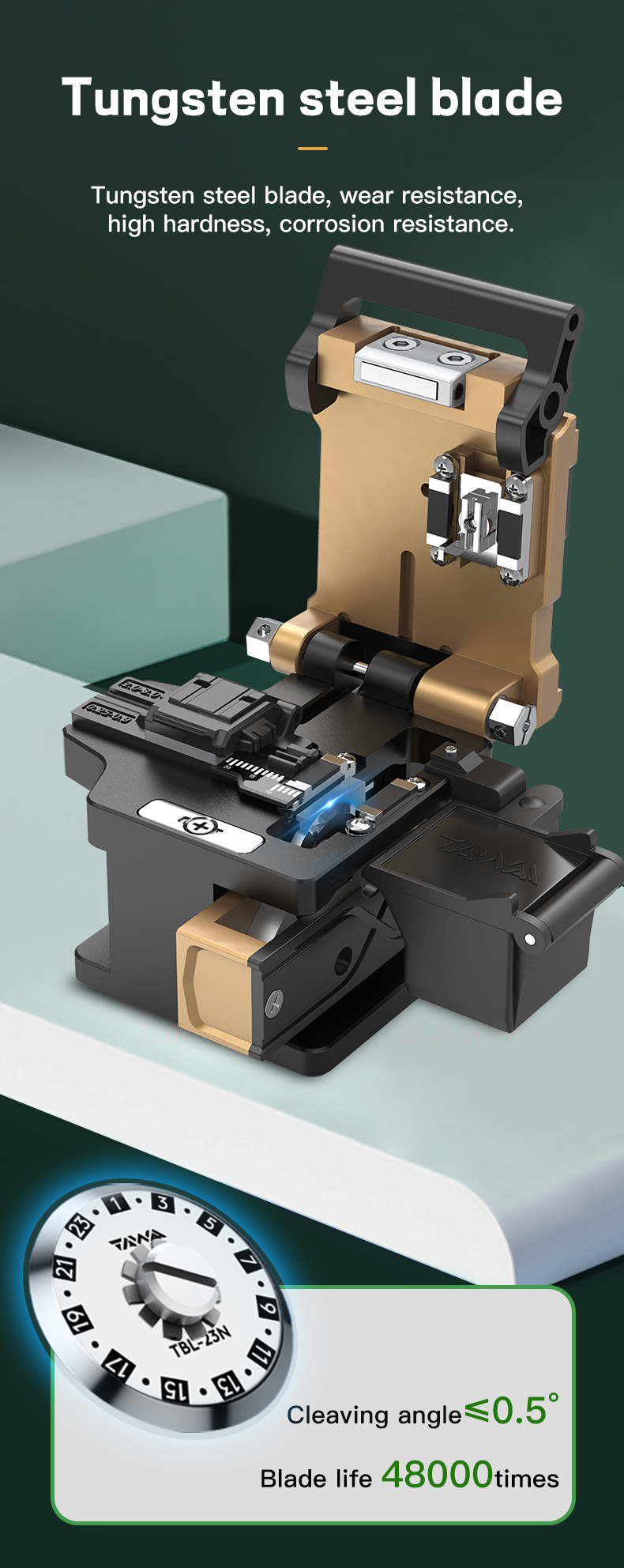

Typical Blade Life Total 48,000 fiber cleaves (replaceable)  ★②
Off-cut Collector Pre-fitted
Type of Offcut Bin Manual

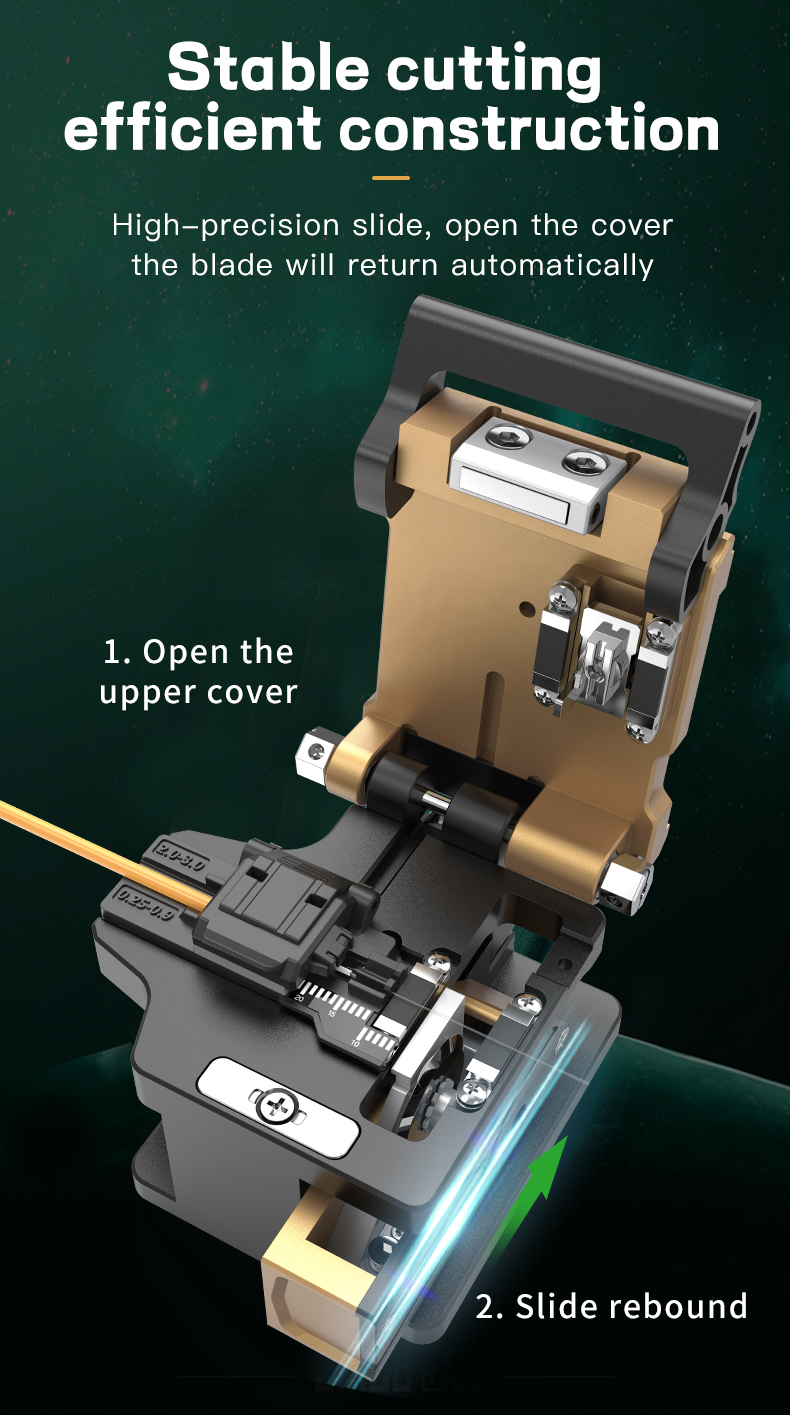

Auto Return Pre-fitted
Dimension / Weight 63W *77D*63H(mm)  /  335g

★①  The fiber cleave angle changes by operating environment

★②  Blade life changes by operating environment

Product configuration

Fiber Cleaver FC-30 1

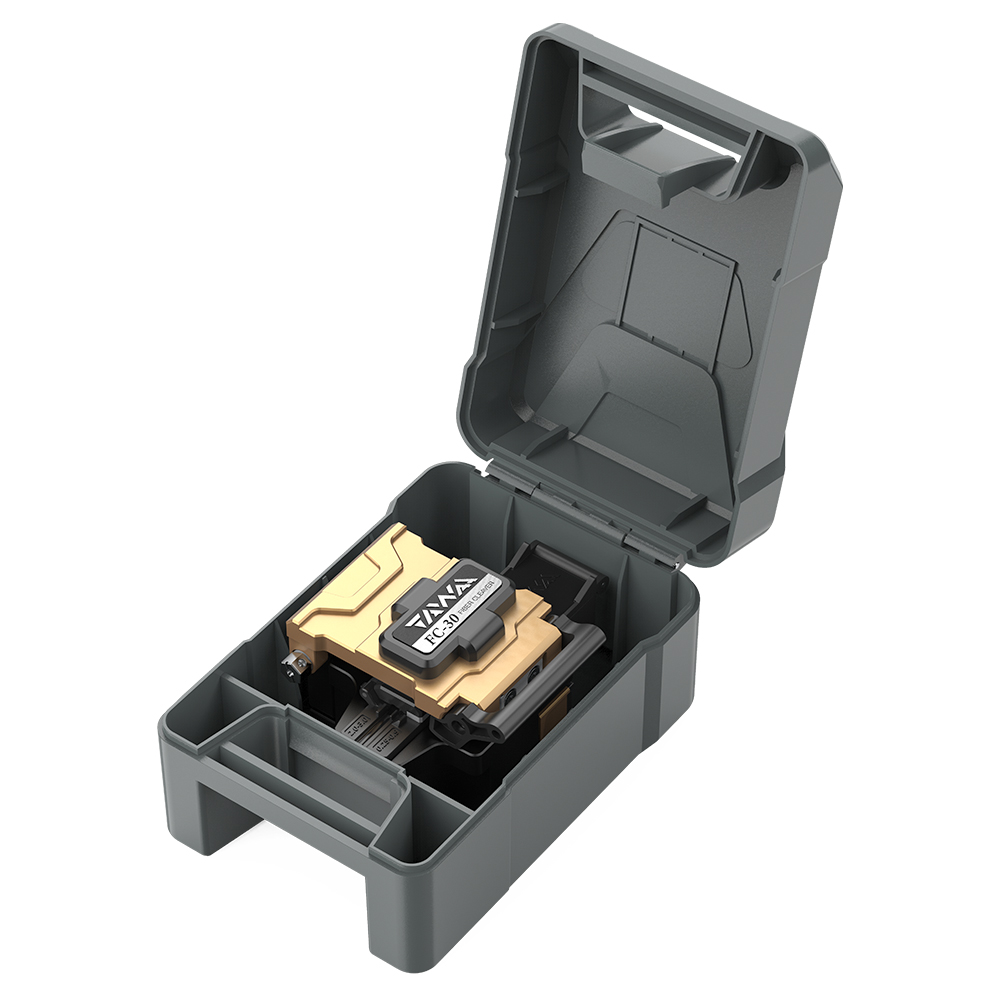

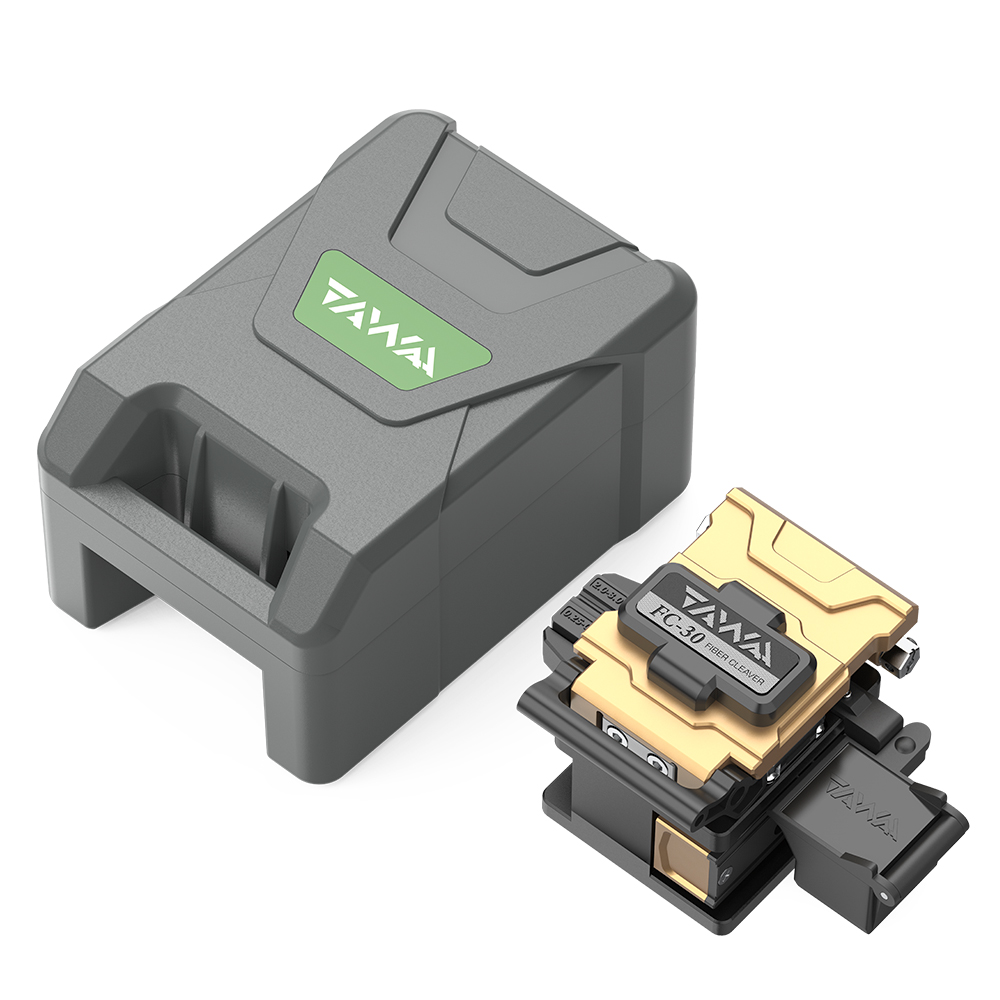

Carrying case 1

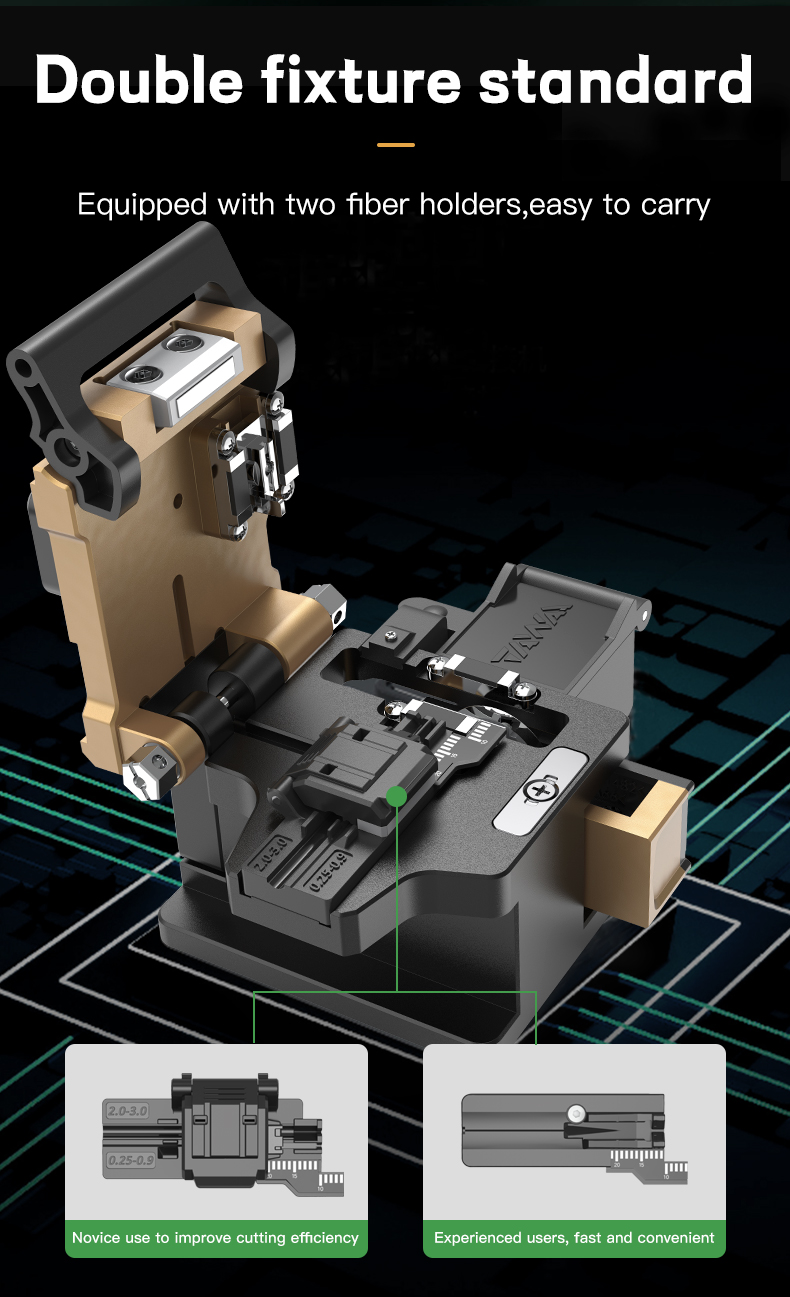

Fiber Clamp Type 2 1
Quick guide 1
